TASBE Workflow Example#
This notebook demonstrates using cytoflow for doing calibrated flow
cytometry, converting the arbitrary units from the flow cytometer to
Molecules Equivalent Fluorescein (MEFLs).
cytoflow’s implementation closely follows that described in Beal
et al and its application
in Davidsohn et al.
It consists of four steps:
Autofluorescence correction.
Spectral bleedthrough correction (aka compensation).
Calibration to physical units (MEFLs, etc.)
Mapping to common logical units (MEFLs in the FITC channel).
Each step requires a particular set of controls. They’ll be described in more detail below, but they are (in short): * Blank (unstained, untransfected, untransformed) cells (to do autofluorescence removal) * One-color controls for each channel (to do spectral bleedthrough correction) * Calibration beads (to do physical unit calibration) * Two-color controls (or perhaps 3- or 4-color controls) to do logical unit mapping.
Experimental Layout#
The experiment whose data we’ll be analyzing characterizes a TALE transcriptional repressor (TAL14, from Li et al). The experiment is a multi-plasmid transient transfection in mammalian cells, depicted below:
Genetic circuit#
The small molecule doxycycline (“Dox”) drives the transcriptional activator rtTA3 to activate the transcriptional repressor (“R1” in the diagram), which then represses output of the yellow fluorescent protein EYFP. rtTA3 also drives expression of a blue fluorescent protein, eBFP, which serves as a proxy for the amount of repressor. Finally, since we’re doing transient transfection, there’s a huge amount of variability in the level of transfection; we measure transfection level with a constitutively expressed red fluorescent protein, mKate.
Setup#
Load cytoflow.
# load the cytoflow library
import cytoflow as flow
# if your figures are too big or too small, you can scale them by changing matplotlib's DPI
import matplotlib
matplotlib.rc('figure', dpi = 160)
As is usual with cytoflow, we start by mapping the files to
experimental conditions. Here, we only vary the amount of Doxycycline,
the small molecule inducer of the repressor.
# [Dox] --> filename
inputs = {
0.0 : 'TAL14_1.fcs',
0.1 : 'TAL14_2.fcs',
0.2 : 'TAL14_3.fcs',
0.5 : 'TAL14_4.fcs',
1.0 : 'TAL14_5.fcs',
2.0 : 'TAL14_6.fcs',
5.0 : 'TAL14_7.fcs',
10.0 : 'TAL14_8.fcs',
20.0 : 'TAL14_9.fcs',
50.0 : 'TAL14_10.fcs',
100.0 : 'TAL14_11.fcs',
200.0 : 'TAL14_12.fcs',
500.0 : 'TAL14_13.fcs',
1000.0 : 'TAL14_14.fcs',
2000.0 : 'TAL14_15.fcs'}
tubes = []
for dox, filename in inputs.items():
tube = flow.Tube(file = filename,
conditions = {'Dox' : dox})
tubes.append(tube)
import_op = flow.ImportOp(conditions = {'Dox' : "float"},
tubes = tubes)
ex = import_op.apply()
Morphological gate#
Start by gating out the cells that we want. This gate will be applied
to the controls as well, because when a control tube is loaded by a
subsequent operation, the entire Experiment’s history is replayed
on that tube too.

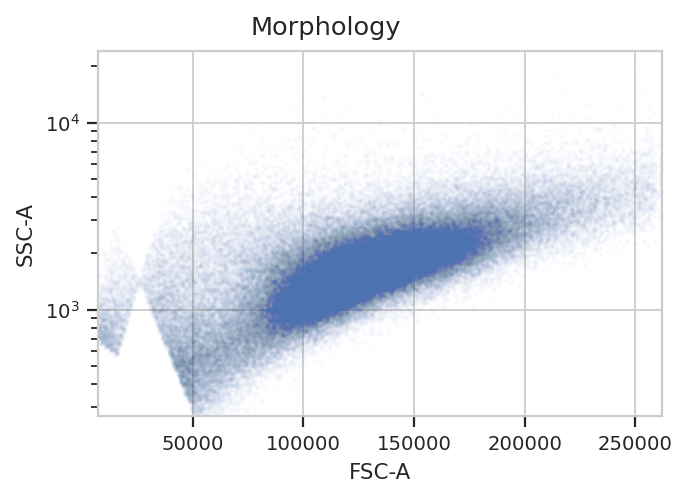

flow.ScatterplotView(xchannel = "FSC-A",
ychannel = "SSC-A",
yscale = "log").plot(ex, alpha = 0.01, title = "Morphology")
gm_1 = flow.GaussianMixtureOp(name = "Morpho",
channels = ["FSC-A", "SSC-A"],
scale = {"SSC-A" : "log"},
num_components = 1,
sigma = 1.5)
gm_1.estimate(ex)
ex_morpho = gm_1.apply(ex)
gm_1.default_view().plot(ex_morpho, alpha = 0.01)

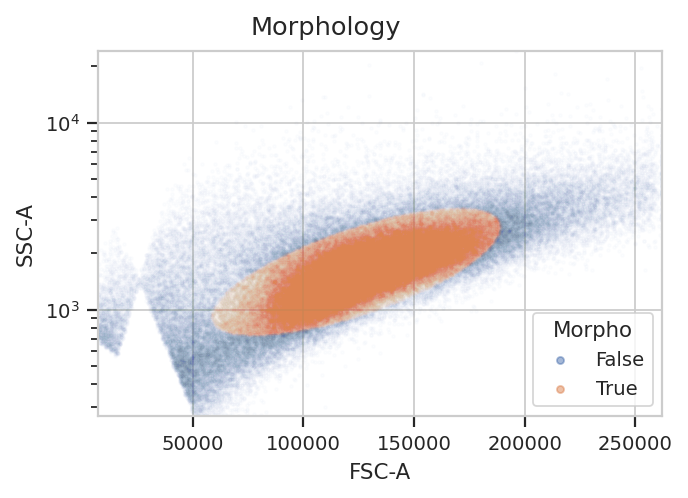

flow.ScatterplotView(xchannel = "FSC-A",
ychannel = "SSC-A",
yscale = "log",
huefacet = "Morpho").plot(ex_morpho, alpha = 0.01, title = "Morphology")
Autofluorescence correction#
To account for autofluorescence, we measure a tube of blank cells
(unstained, untransfected, untransformed – not fluorescing.) The
autofluorescence operation finds the (arithmetic) median of the blank
cells’ distributions in the fluorescence channels and subtracts it from
all the observations in the experimental data. We specify
Morpho == True to capture the same subset of cells that we are using
in our analysis.
The diagnostic plot just shows the fluorescence histograms and the medians. Make sure that they’re unimodal and the median is at the peak.
af_op = flow.AutofluorescenceOp()
af_op.blank_file = "controls/Blank-1_H12_H12_P3.fcs"
af_op.channels = ["Pacific Blue-A", "FITC-A", "PE-Tx-Red-YG-A"]
af_op.estimate(ex_morpho, subset = "Morpho == True")
af_op.default_view().plot(ex_morpho)
ex_af = af_op.apply(ex_morpho)
Spectral bleedthrough correction#
This operation characterizes how much a fluorophore’s signal shows up in channels other than the one you are using to detect it. For example, EYFP is primarily measured in the (yellow) FITC channel, but some signal also shows up in the (red) PE-Texas Red channel.
The controls for this operation are single-fluorescent controls – either single fluorescent proteins or singly-stained cells. They should fluoresce brightly, so as to best-characterize bleedthrough.
bl_op = flow.BleedthroughLinearOp()
bl_op.controls = {'Pacific Blue-A' : 'controls/EBFP2-1_H9_H09_P3.fcs',
'FITC-A' : 'controls/EYFP-1_H10_H10_P3.fcs',
'PE-Tx-Red-YG-A' : 'controls/mkate-1_H8_H08_P3.fcs'}
bl_op.estimate(ex_af, subset = "Morpho == True")

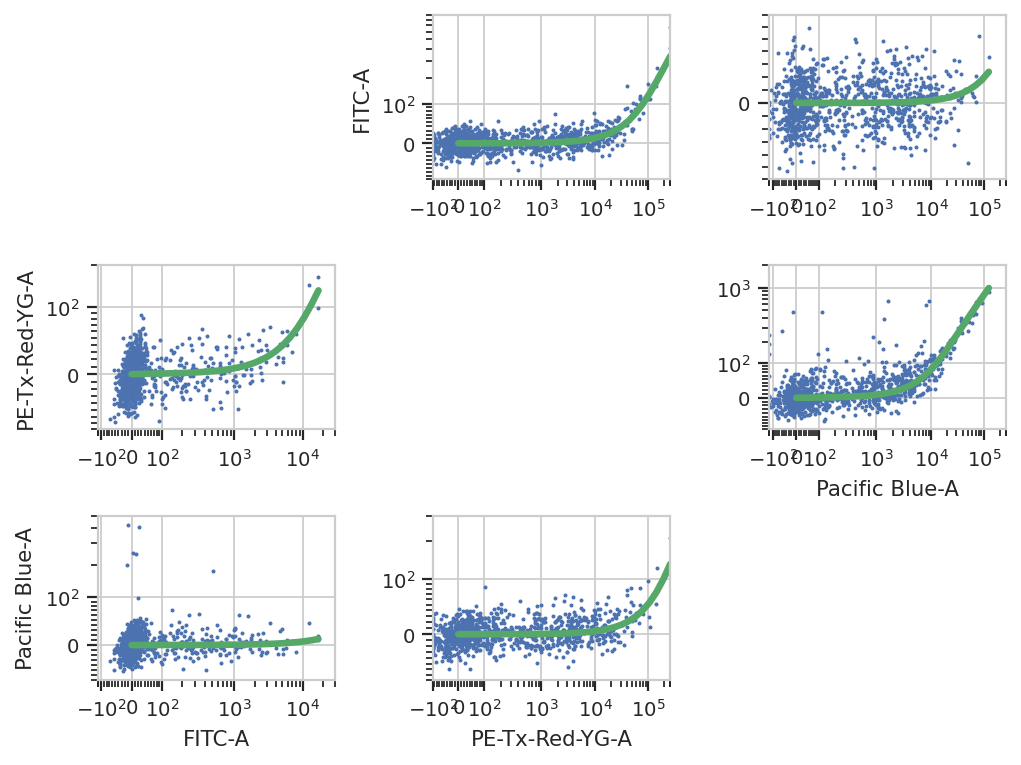

bl_op.default_view().plot(ex_af)
ex_bl = bl_op.apply(ex_af)
Bead Calibration#
Unfortunately, the raw measurements from a flow cytometer are sensitive to many factors. These range from the precise optical configuration, to the laser power, to the PMT voltage, to the last time the instrument was cleaned and calibrated. Thus, the measurements taken on one instrument are not directly compatible with those taken on another. (Sometimes, even day-to-day variation on the same instrument is enough to ruin comparisons.)
One way to address this is to calibrate your measurements against a stable, well-characterized calibrant. My favorite is a set of stable fluorescent beads, such as the Spherotech RCP-30-5As. This module calibrates measurements to molecules of equivalent fluorophores, which can make calibrations (more) comparable. Read the beads’ documentation for more details.
NB: Adding new beads is easy! See the bead_calibration module’s
source code.
bead_op = flow.BeadCalibrationOp()
bead_op.beads = flow.BeadCalibrationOp.BEADS['RCP-30-5A Lot AA01, AA02, AA03, AA04, AB01, AB02, AC01 & GAA01-R']
bead_op.units = {"Pacific Blue-A" : "MEBFP",
"FITC-A" : "MEFL",
"PE-Tx-Red-YG-A" : "MEPTR"}
bead_op.beads_file = "controls/BEADS-1_H7_H07_P3.fcs"
bead_op.estimate(ex_bl)

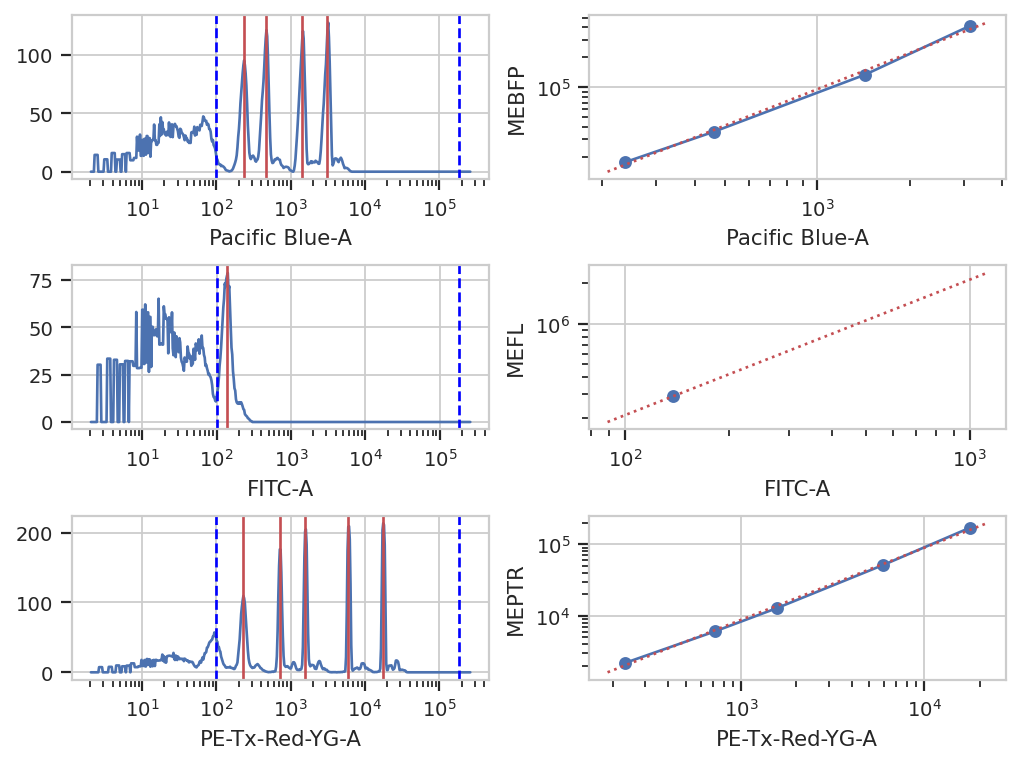

bead_op.default_view().plot(ex_bl)
ex_beads = bead_op.apply(ex_bl)
Color Translation#
At the end of the day, we want to be able to compare signals collected in the yellow channel to signals from the blue and red channels in comparable units. Unfortunately, different fluorescent proteins mature at different rates, have different quantum efficiencies, etc – so even if we measure the same absolute fluorescence (in photon flux, say), we still can’t say that the number of molecules is the same.
One way around this is to use a biological control where you are releatively certain that the number of molecules is the same to compute a conversion factor. For example, EYFP and mKate and EBFP2 all expressed under the same promoter in the same cell line should produce the same amounts of RNA and comparable amounts of protein. This module lets you use a set of controls like this to convert between biological signals.
ct_op = flow.ColorTranslationOp()
ct_op.controls = {("Pacific Blue-A", "FITC-A") : "controls/RBY-1_H11_H11_P3.fcs",
("PE-Tx-Red-YG-A", "FITC-A") : "controls/RBY-1_H11_H11_P3.fcs"}
ct_op.mixture_model = True
ct_op.estimate(ex_beads, subset = "Morpho == True")

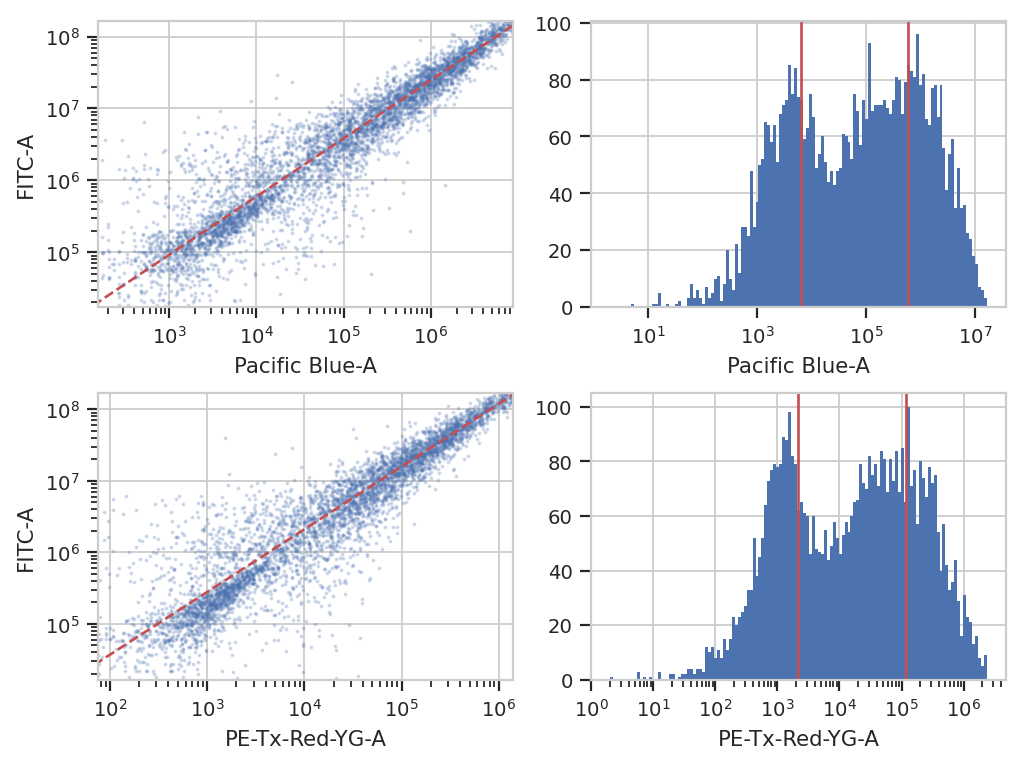

ct_op.default_view().plot(ex_beads)
ex_calib = ct_op.apply(ex_beads)
Binned Analysis#
As described above, the example data in this notebook is from a transient transfection of mammalian cells in tissue culture. What this means is that there’s a really broad distribution of fluorescence, corresponding to a broad distribution of transfection levels.
flow.HistogramView(channel = "PE-Tx-Red-YG-A",
scale = "log",
subset = "Morpho == True").plot(ex_calib,
title = "Constitutive Fluorescence",
xlabel = "mKate2 fluorescence (MEFL)")

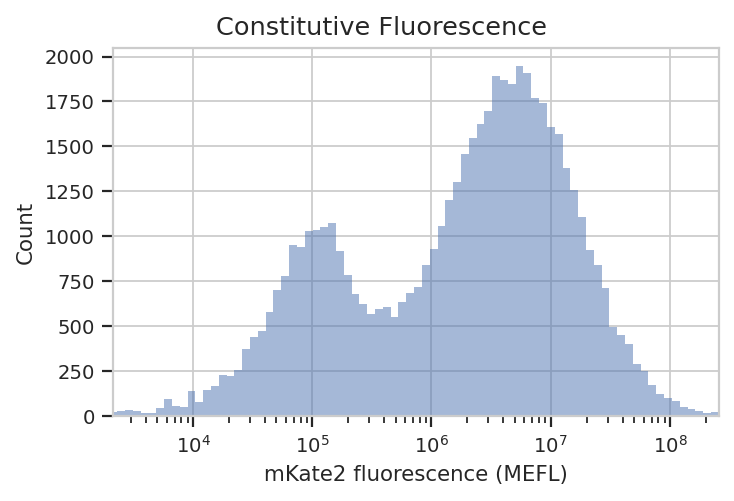

See? The left peak is cells that are untransfected; the right peak is cells that were. The cells that were transfected seem to range from about 3x10^5 MEFL up to 10^8 MEFL, over two orders of magnitude.
The way we handle this data is by dividing the cells into bins depending
on their transfection levels. We find that cells that recieved few
plasmids frequently behave differently (quantitatively speaking) than
cells that received many plasmids. The BinningOp module applies
evenly spaced bins; in this example, we’re going to apply them on a log
scale, every 0.1 log-units.
ex_bin = flow.BinningOp(name = "CFP_Bin",
bin_count_name = "CFP_Bin_Count",
channel = "PE-Tx-Red-YG-A",
scale = "log",
bin_width = 0.1).apply(ex_calib)

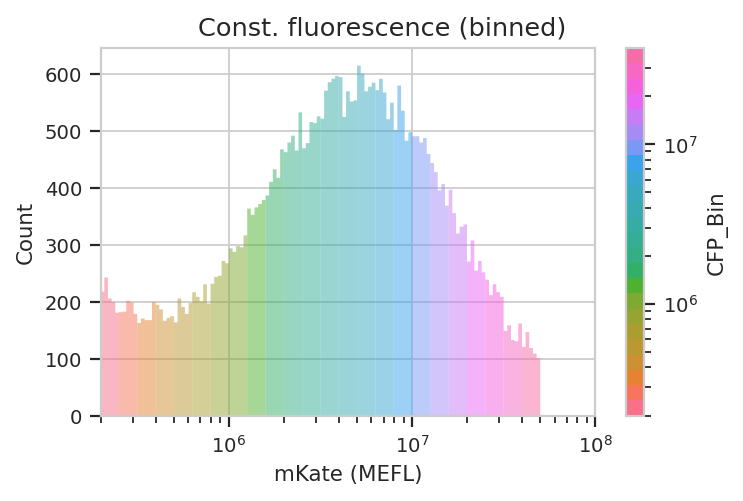

flow.HistogramView(channel = "PE-Tx-Red-YG-A",
huefacet = "CFP_Bin",
huescale = "log",
scale = "log",
subset = "Morpho == True & "
"PE_Tx_Red_YG_A >= 200000 and CFP_Bin_Count > 1000").plot(ex_bin,
xlabel = "mKate (MEFL)",
title = "Const. fluorescence (binned)",
lim = (2e5, 1e8))
Now we can start our analysis properly. For each unique combination of [Dox] and bin, we compute four values: - The geometric mean of the Pacific Blue channel, the “input fluorescent protein” or IFP - The geometric mean of the ratio of IFP and PE-Texas Red channels - The geometric mean of the FITC channel, the “output fluorescent protein” or OFP - The geometric mean of the ratio of the FITC and PE-Texas Red channels
Remember, because we calibrated the measurements, the CFP, IFP and OFP
channels are on the same scale, which makes comparisons between them
(ratios, etc) meaningful. We can do this entire thing in a single
FrameStatisticsOp using a lambda expression that returns a
pandas.Series:
import pandas as pd
# ex_stats = flow.ChannelStatisticOp(name = "IFP",
# channel = "Pacific Blue-A",
# by = ["Dox", "CFP_Bin"],
# function = flow.geom_mean,
# subset = "Morpho == True and "
# "PE_Tx_Red_YG_A > 200000 and CFP_Bin_Count > 1000").apply(ex_bin)
# ex_stats = flow.FrameStatisticOp(name = "IFP",
# by = ["Dox", "CFP_Bin"],
# function = lambda x: pdflow.geom_mean(x["Pacific Blue-A"] / x["PE-Tx-Red-YG-A"]),
# statistic_name = "geom_mean_per_cfp",
# subset = "Morpho == True and "
# "PE_Tx_Red_YG_A > 200000 and CFP_Bin_Count > 1000").apply(ex_stats)
# ex_stats = flow.ChannelStatisticOp(name = "OFP",
# channel = "FITC-A",
# by = ["Dox", "CFP_Bin"],
# function = flow.geom_mean,
# subset = "Morpho == True and "
# "PE_Tx_Red_YG_A > 200000 and CFP_Bin_Count > 1000").apply(ex_stats)
# ex_stats = flow.FrameStatisticOp(name = "OFP",
# by = ["Dox", "CFP_Bin"],
# function = lambda x: flow.geom_mean(x["FITC-A"] / x["PE-Tx-Red-YG-A"]),
# statistic_name = "geom_mean_per_cfp",
# subset = "Morpho == True and "
# "PE_Tx_Red_YG_A > 200000 and CFP_Bin_Count > 1000").apply(ex_stats)
ex_stats = flow.FrameStatisticOp(name = "Input_Output",
by = ["Dox", "CFP_Bin"],
function = lambda x: pd.Series({"IFP" : flow.geom_mean(x["Pacific Blue-A"]),
"IFP/CFP" : flow.geom_mean(x["Pacific Blue-A"] / x["PE-Tx-Red-YG-A"]),
"OFP" : flow.geom_mean(x["FITC-A"]),
"OFP/CFP" : flow.geom_mean(x["FITC-A"] / x["PE-Tx-Red-YG-A"])}),
subset = "Morpho == True and "
"PE_Tx_Red_YG_A > 200000 and CFP_Bin_Count > 1000").apply(ex_bin)
Let’s start with our input fluorescent protein, EBFP2. Do we see more of it as we increase [Dox]? Is the response different in different bins (i.e. different transfection levels?)

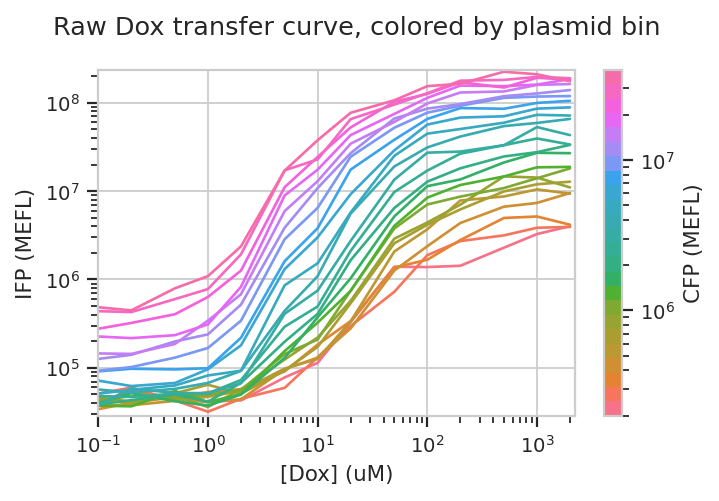

flow.Stats1DView(statistic = "Input_Output",
feature = "IFP",
variable = "Dox",
variable_scale = "log",
scale = "log",
huefacet = "CFP_Bin",
huescale = "log").plot(ex_stats,
xlabel = "[Dox] (uM)",
ylabel = "IFP (MEFL)",
huelabel = "CFP (MEFL)",
title = "Raw Dox transfer curve, colored by plasmid bin")
The answer to both questions is “yes”: there is an increase in IFP signal as we increase [Dox], and the precise quantitative character of the curve is different depending on which bin we select. Of particular interest is how moderately transfected bins (say, 10^5 through 10^6) have greater on-off ratios than bins on either side of the transfection distribution.
Does this hold when we normalize by transfection (ie, divide by CFP)?

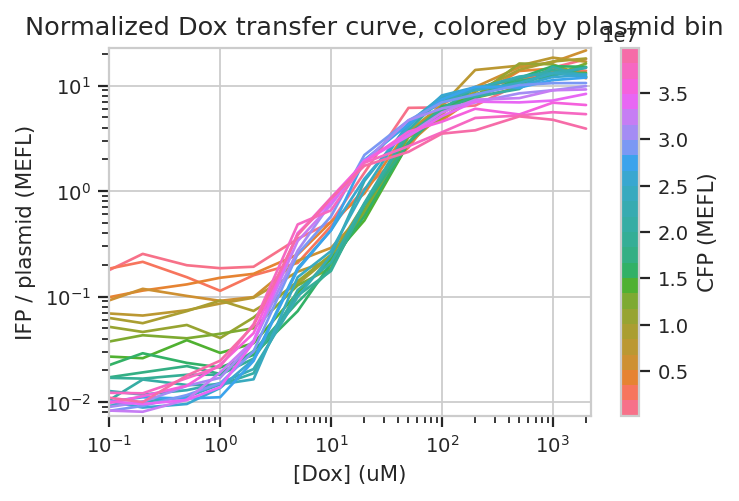

flow.Stats1DView(statistic = "Input_Output",
feature = "IFP/CFP",
variable = "Dox",
scale = "log",
variable_scale = "log",
huefacet = "CFP_Bin").plot(ex_stats,
xlabel = "[Dox] (uM)",
ylabel = "IFP / plasmid (MEFL)",
huelabel = "CFP (MEFL)",
title = "Normalized Dox transfer curve, colored by plasmid bin")
Sure enough, the moderately trasnfected curves fall right on top of eachother, making it really obvious that the fold induction of different bins is different.
Things get really interesting when we start plotting different features against eachother. In the example below, we plot how the geometric mean of each bin’s IFP and OFP change as we vary Dox. There is one line plotted per bin.

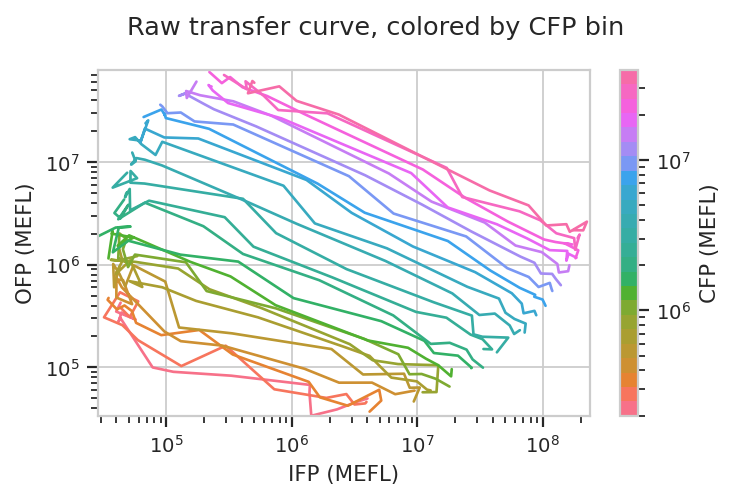

flow.Stats2DView(statistic = "Input_Output",
xfeature = "IFP",
yfeature = "OFP",
variable = "Dox",
xscale = "log",
yscale = "log",
huescale = "log",
huefacet = "CFP_Bin").plot(ex_stats,
xlabel = "IFP (MEFL)",
ylabel = "OFP (MEFL)",
huelabel = "CFP (MEFL)",
title = "Raw transfer curve, colored by CFP bin")
We can do the same thing with the scaled statistics, too.

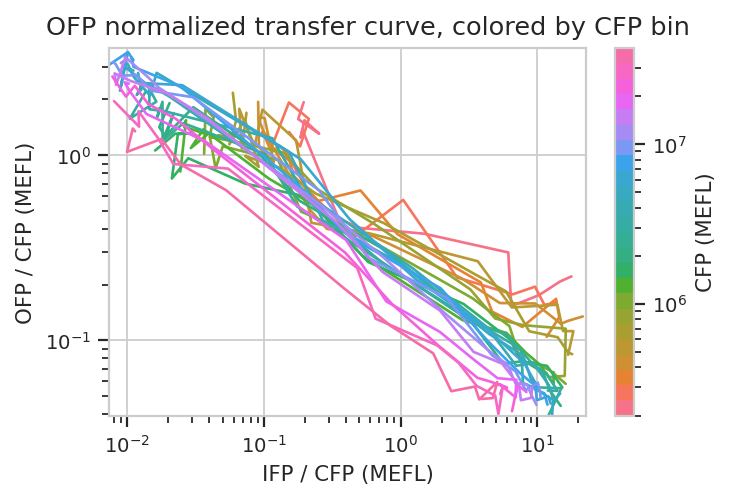

flow.Stats2DView(statistic = "Input_Output",
xfeature = "IFP/CFP",
yfeature = "OFP/CFP",
variable = "Dox",
xscale = "log",
yscale = "log",
huescale = "log",
huefacet = "CFP_Bin").plot(ex_stats,
xlabel = "IFP / CFP (MEFL)",
ylabel = "OFP / CFP (MEFL)",
huelabel = "CFP (MEFL)",
title = "OFP normalized transfer curve, colored by CFP bin")
